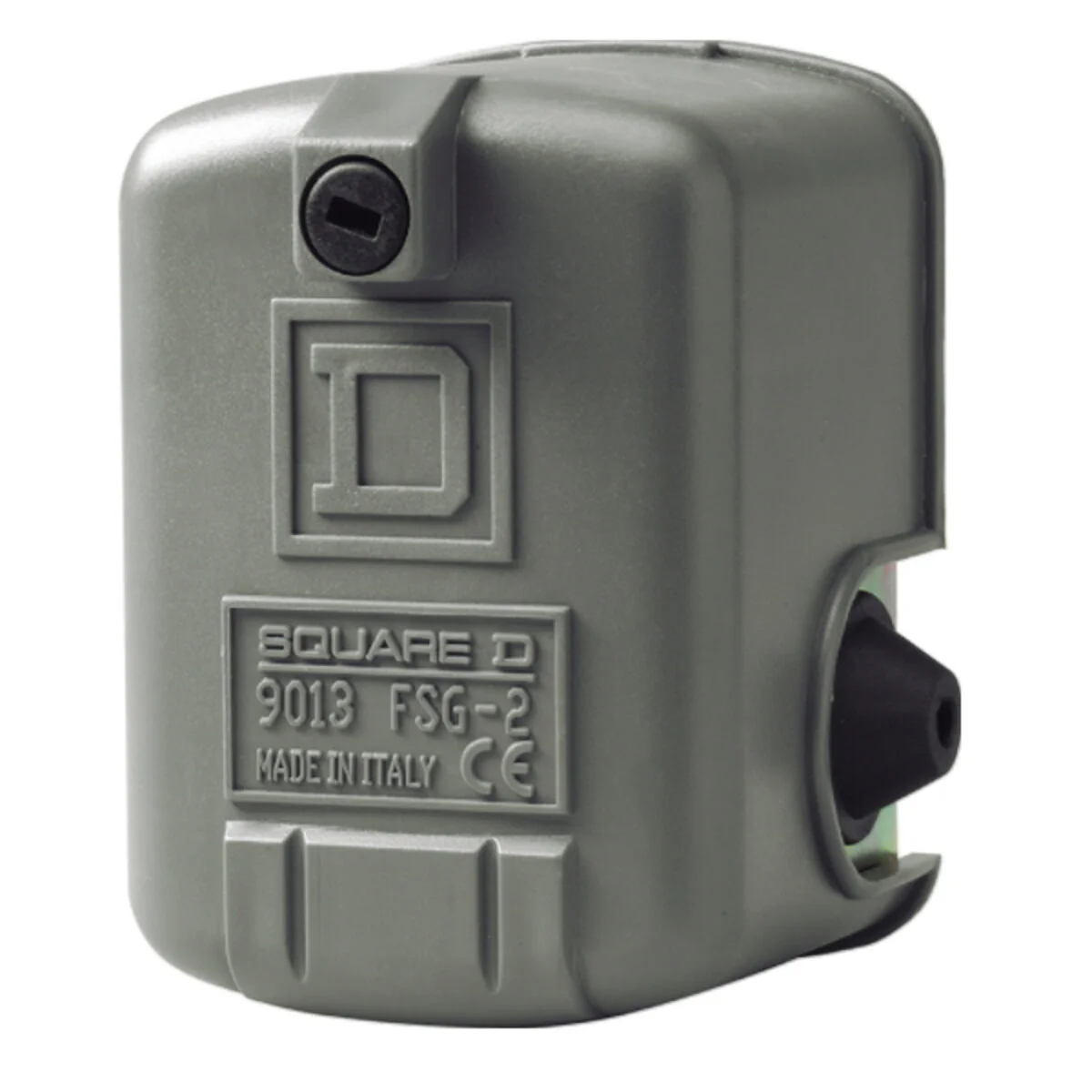

SQUARE-D PRESSURE SWITCH 4,5 FAET

The Square-D Pressure Switch is used in most systems with pressurized fluids. In particular, it carries out the function of automatic control of the pressure energy levels by acting on the power supply of the electric pump. Type of controlled fluid: fresh water, sea water, from 0°C to +55°C.

It is used to control water pressure up to 10.5 bar.

The Square-D pressure switch is previously calibrated at standard contact closing and opening pressures, but there are cases in which it can be calibrated at different pressures thanks to its adjustment device which switches the electric pump on and off based on the pressure.

TECHNICAL FEATURES

Bipolar switch, for 230 V rated voltage

Adjustable trigger pressure

Minimum operating pressure: 1.0 – 2.1 bar

Factory setting pressure: 1.4 – 2.8 bar

Setting range with increasing pressure: 1.4 – 4.6

Connection: ¼” female

Accessori elettropompe Climamarket

Square d fsg2 pressure switch for autoclave
