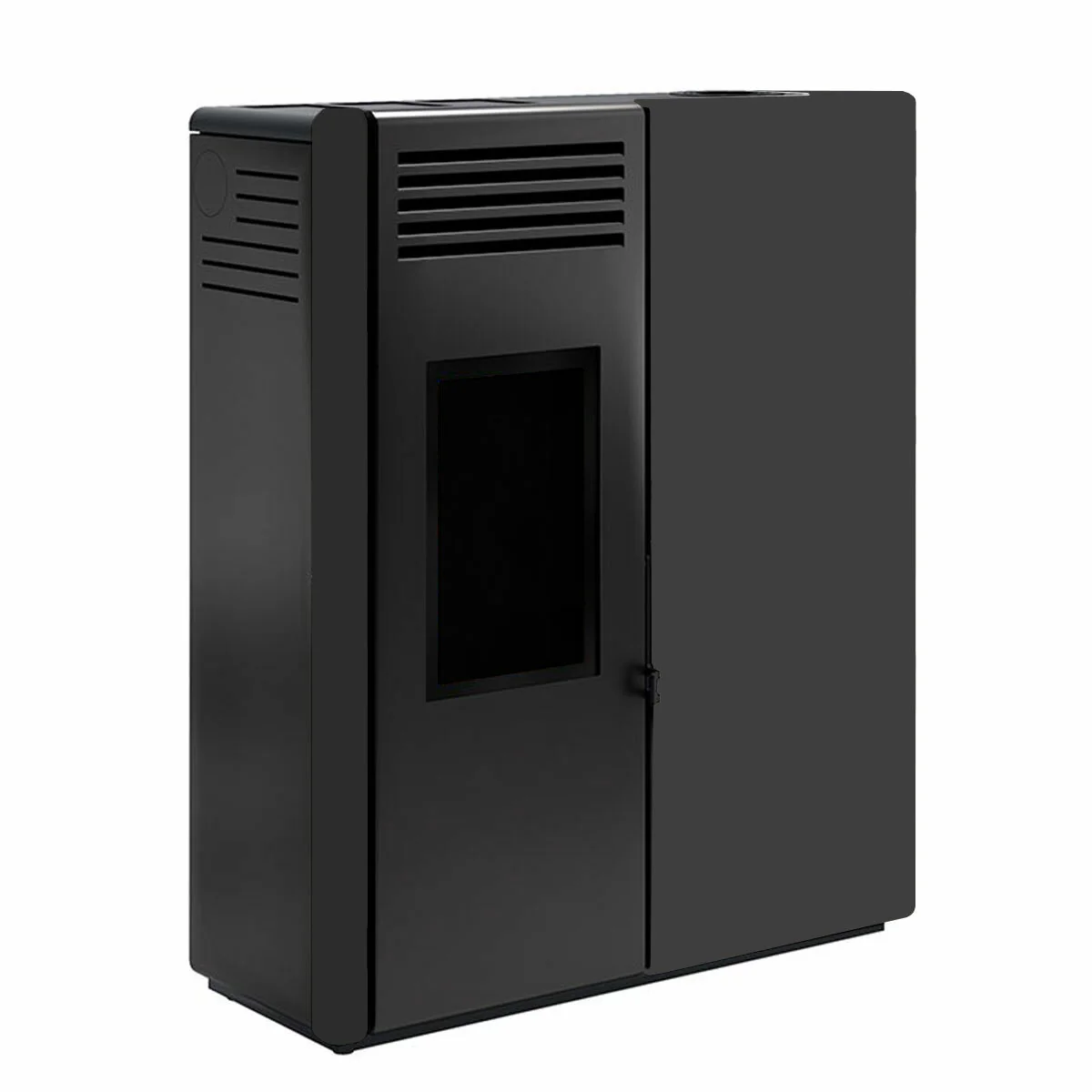

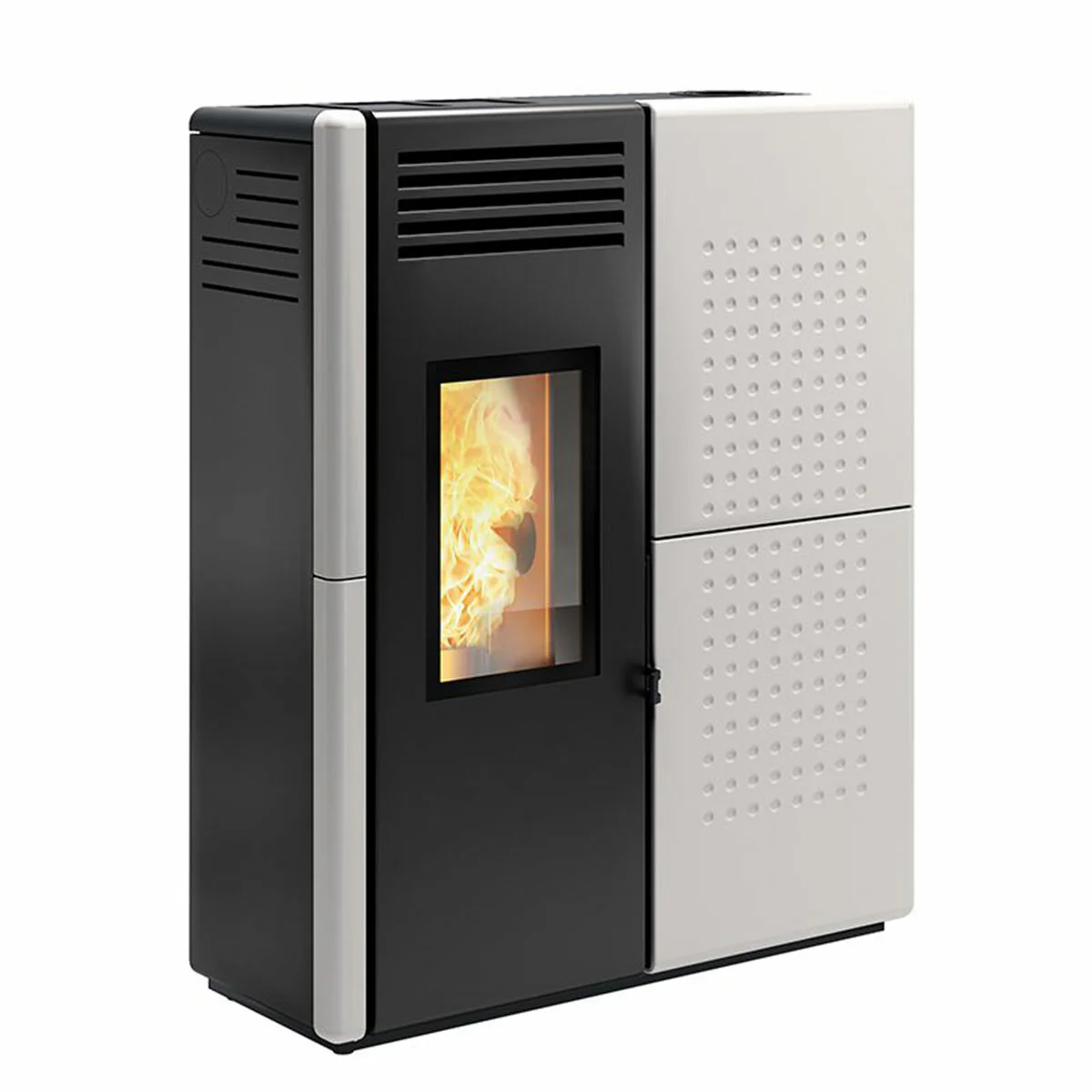

Caminetti Montegrappa Fendor SXS12 pellet stove 13.4 kW hermetic with ventilated hot air and ductable with Smart ventilation

The Fendor pellet stove by Caminetti Montegrappa is the perfect combination of practicality, elegance and power. Fendor XSX12 is configured in all respects as an intelligent and environmentally friendly investment, this because it uses an economic and ecological fuel, pellets, which will bring immediate savings in consumption and management costs and a comfortable environment without sudden changes in temperature.

A true technological jewel, Caminetti Montegrappa Fendor XSX is hot air ventilated and ductable with intelligent ventilation. Silent and performing, it offers energy performances up to class A+ and quality class (DM 186 - 7/11/17) 5 stars.

DESIGN

The Caminetti Montegrappa Fendor pellet stove is essential and elegant, with soft and delicate contours, majolica cladding and painted steel structure, in the version proposed here it is white. The front part is elegant and sober, ideal for insertion in any environment by virtue of its contemporaneity which allows it to be truly versatile and eclectic. The combustion chamber accompanies the vision of an enveloping and living flame that creates suggestive atmospheres in the domestic environment. Rear, top or side smoke outlet to reduce overall dimensions, which are already optimized by the minimum depth of only 36 cm. Removable ash drawer, convenient, practical and tidy and non-slip feet to ensure stability. The entire stove has been designed to make it as easy for users as possible by creating a product that is simple, technological and methodical.

TECHNOLOGY, COMFORT AND SAVINGS

The Caminetti Montegrappa Fendor pellet stove is a concentrate of efficiency and practicality, in fact it not only guarantees energy performance up to class A+ but has also been certified 5 stars as a quality class (DM 186 - 7/11/17) by virtue of its technical peculiarities, extremely functional to the needs of users to facilitate their use and general maintenance. In fact, maintenance is facilitated, the stove is cleaned quickly and easily and the reduced pellet consumption ensures greater savings and lower polluting emissions.

Multiple technical features make this pellet stove one of the most interesting and innovative, perfect both for heating and for furnishing your rooms with style. The SMART ventilation certainly deserves a special mention: intelligent therefore silent! Caminetti Montegrappa has included an innovative software for the intelligent management of the air fan which allows the stove to operate in silent mode even at night, giving comfort and serenity.

It also includes a control panel equipped with a backlit graphic display with TOUCH SCREEN digital icons, positioned on the upper part, therefore extremely comfortable and practical; cylindrical burner in steel; fire floor grate; modern removable backrest in cast iron; rear heat exchanger; intuitive software that allows you to set both the ambient temperature and the maximum operating power, in addition to the STAND BY function for maintaining the desired comfort in the internal environment; chronothermostat with hourly programming; ignition tube inside the burner, perfect ignition and combustion control; continuous rotation gearmotor; centrifugal fan of ambient air and ducted air; combustion air which allows the stove to be certified hermetic for passive houses, studio flats and bedrooms; security depression.

This pellet stove includes the predisposition for combustion air ducting, the possibility of managing the ducting (optional) by means of a probe or thermostat and pellet combustion calibration adjustment by the user. Everything is designed to obtain maximum efficiency: double efficient heat exchange, one for heating the room air and one for the ducted air (kit for ducted air to be purchased separately).

Extremely silent and manageable also via Wi-Fi module (optional).

The installation must be carried out by authorized and qualified technical personnel.

The Caminetti Montegrappa Fendor XSX12 pellet stove has obtained the CE, EN 14785 and ECODESIGN 2022 certifications.

Technical features

- Global thermal power (at the hearth): 13.4 kW

- Certified power: 4.9 - 12.4 kW

- Power delivered to the ducting: 3.0 kW

- Measured CO (at 13% oxygen): 0.0053%

- Efficiency: 92.4%

- Fuel consumption: 1.09 - 2.81 kg/h

- Fume mass flow rate: 5.3 - 8.1 g/s

- Smoke temperature: 86 - 143 °C

- Draft (chimney depression): 5 Pa

- Tank capacity: 26 kg

- Autonomy: 9 - 23.5 hours

- Smoke outlet pipe: Ø 80 mm

- Air inlet for combustion: Ø 50 mm

- Heatable surface: 142 sqm

Dimensions

Body + cover: LxWxH 96x36x118 cm

Weight: 115kg

Warranty

The warranty is the official Caminetti Montegrappa one and has a duration of 2 years.
