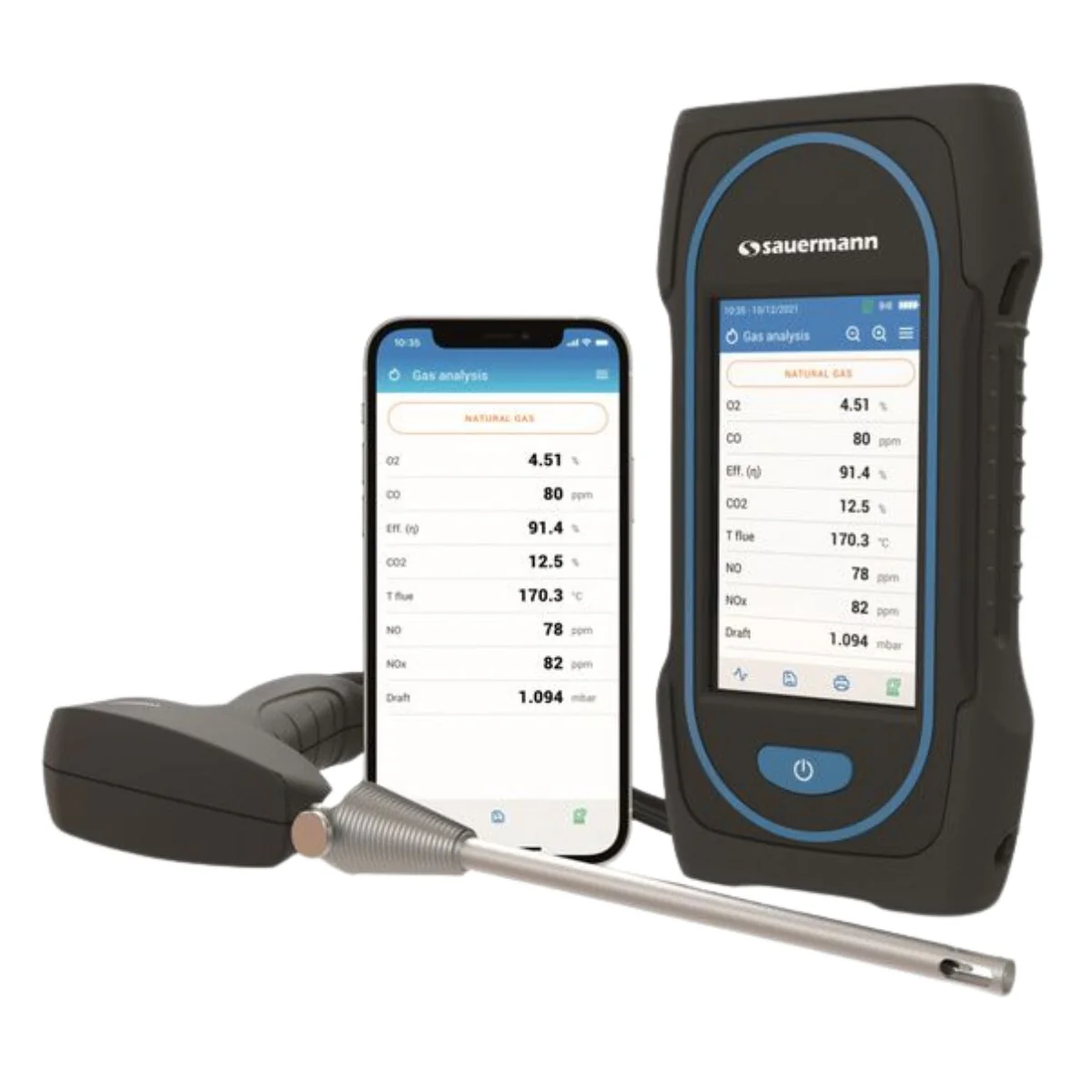

Sauermann Si-CA 130 2AHD Combustion Analyzer
Sauermann Si-CA 130 2AHD Combustion Analyzer KIT
The Sauermann Si-CA 130 cod. 27850 is a professional combustion analyzer kit for residential and commercial generators, ideal for checks, maintenance and combustion efficiency control.
This version includes 2 electrochemical cells (O2 and CO) , with an expandable instrument for a third cell (NO) , a color touchscreen display, wireless communication via mobile app, and a remote printer. The system allows for combustion, draft, and differential pressure measurements, as well as CO2, efficiency, and excess air calculations.
The kit includes a 180 mm flue gas probe with a 2 m hose, a condensation trap with filter, a magnetic protective case, a hard ABS case, a charger, a USB cable, a quick start guide, a calibration certificate, a wireless printer, and a pack of replacement filters. It is also designed for system leak testing according to UNI 7129 and UNI 11137 .
Main features
- Kit Si-CA 130 2AH IT
- Cells: O2 + CO
- Expandable with NO cell
- Color touch screen display
- 180 mm smoke probe with 2 m tube
- Draft sensor compliant with UNI 10845
- Mobile apps, PC software, and wireless communication
- Wireless printer included
- 2-year instrument warranty, 4-year O2/CO cells warranty
Suitable for combustion analysis on:
- Traditional boilers
- Condensing boilers
- Gas water heaters
- Residential thermal generators
- Small/medium power commercial thermal generators
- Pellet stoves
- Pellet stoves
- Pellet boilers
- Domestic multi-fuel systems
- Small/medium power biomass generators
- Gas and diesel burners
- Systems with combustion verification and smoke analysis
- Systems subject to draft and efficiency control according to UNI regulations
Compatibility with different generators must always be verified by qualified personnel, in compliance with the technical specifications and manufacturer's provisions.
NB: FOR FURTHER DETAILS WE RECOMMEND VIEWING THE TECHNICAL DATA SHEET ATTACHED.
WARRANTY
The warranty is the official Sauermann one and lasts 2 years.
