SFA Sanitop UP WC macerator for toilet and sink

SFA Sanitop UP WC macerator for toilet and sink

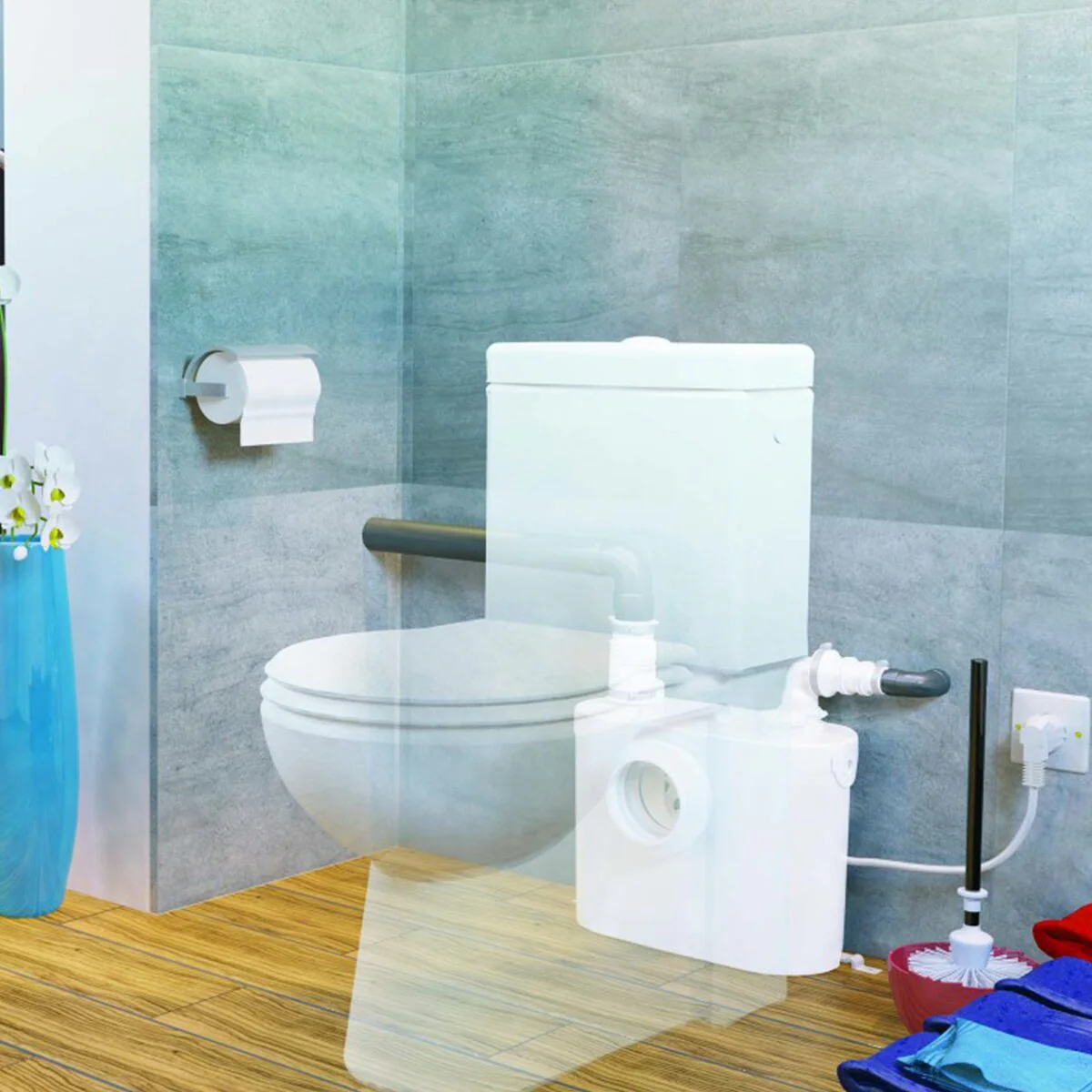

SFA Sanitop UP is a compact macerator designed to facilitate the installation of a toilet and a sink in environments without gravity drainage, such as basements, attics or commercial premises. Thanks to its integrated pump, it allows the lifting of waste water up to 5 meters vertically and 100 meters horizontally, using small diameter pipes (Ø 22/28/32 mm).



MAIN FEATURES:

• Versatile installation: Compatible with all traditional horizontal flush toilets, it can be easily installed behind the sanitary fixture.

• Double inlet: Allows the simultaneous connection of a toilet and a sink, ideal for creating secondary bathrooms.

• Simplified maintenance: Direct access to the basket for quick interventions without having to disassemble the appliance or empty the tank.

• Silent operation : Low noise level of 46 dB(A), ensuring acoustic comfort.

• Complete equipment: Supplied with flap valve, connection kit, connectors and activated carbon filter to neutralise odours.

• Compatibility: Easily replaces previous models in the Sanitrit range without the need for modifications to existing pipes.



TECHNICAL FEATURES:

• Power supply : 220–240 V / 50 Hz

• Motor power : 400 W

• Electrical class : I

• Protection index : IP44

• Noise level : 46 dB(A)

• Flow rate : 80 L/min

• Maximum vertical discharge : 5 m

• Maximum horizontal discharge : 100 m

• Number of inlets : 2 (1 x Ø 100 mm for WC, 1 x Ø 40 mm for washbasin)

• Outlet diameter : 22/28/32 mm

• Dimensions (L x W x H) : 339 x 222 x 265 mm

• Weight : 4.6 kg

• Wheel type: single blade knife



WARRANTY

The warranty is the official SFA one and lasts 2 years.
